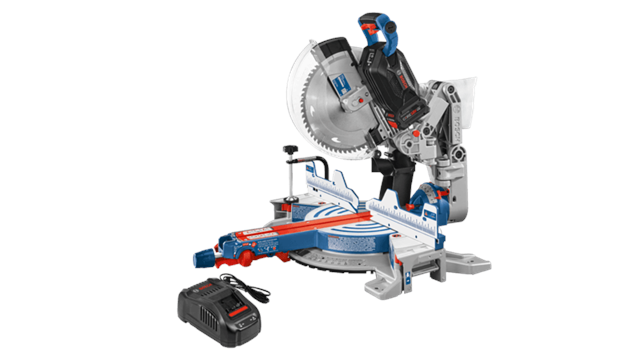

PROFACTOR 18V Surgeon 12 In. Dual-Bevel Glide Miter Saw Kit with (1) CORE18V 8.0 Ah PROFACTOR Performance Battery
|
MSRP: $1,299.00
$899.00
You Save: $400.00 (31 %)
Manufacturer: Bosch Tool Corp
Manufacturer Part No: GCM18V-12GDCN14
PHTS Number: BOSGCM18V-12GDCN14
|
TECHNICAL DATA
Specifications |
Battery Chemistry
|
Lithium Ion
|
Battery Voltage (V)
|
18
|
Bevel Angle Range
|
47° left and 47° right
|
Bevel Stops
|
0°, 33.9°, 45° and 47° (L/R)
|
Blade Diameter
|
12.0
|
Blade Size
|
12"
|
Case Type
|
No Case Included
|
Category
|
Benchtop
|
Height
|
27.0"
|
Length
|
32.0"
|
Max. Base Molding Against Fence
|
7-1/4 In. (4 In. from 31.6° to 60° R)
|
Max. Crown Molding (38° Spring) Angled Against Fence
|
5-1/2 In.
|
Max. Crown Molding (45° Spring) Angled Against Fence
|
6 In.
|
Max. Cut Capacity - 0° Miter 0° Bevel
|
3-1/2 In. x 13-1/2 In.
|
Max. Cut Capacity - 0° Miter 45° Left Bevel
|
2 In. x 13-1/2 In.
|
Max. Cut Capacity - 0° Miter 45° Right Bevel
|
1-1/2 In. x 13-1/2 In.
|
Max. Cut Capacity - 45° Miter 0° Bevel
|
3-1/2 In. x 9-1/2 In.
|
Max. Cut Capacity - 45° Miter 45° Left Bevel
|
2 In. x 9-1/2 In.
|
Max. Cut Capacity - 45° Miter 45° Right Bevel
|
1-1/2 In. x 9-1/2 In.
|
Miter Angle Range
|
52° Left, 60° Right
|
Miter Detents
|
0°, 15°, 22.5°, 31.6°, 45°, (Left/Right) 60°, (Right)
|
Weight
|
59.3lb
|
Width
|
26.5"
|
Works With
|
Recommended Battery Packs to help achieve maximum tool performance
Recommended Battery Packs to help achieve maxiGBA18V80 and GBA18V120 PROFACTOR Batteries
Bosch Bluetooth® Connectivity Module
GCY42 (See tool manual for its connectivity/app features.)
Miter Saw Stands
T1B, T4B, GTA3800
Crown Molding Stops (Pair)
MS1233
Length Stop
MS1234
Anti-Static Vacuum Hoses
VH1622A and VH1635A (by means of anti-static adapter included with those hoses), VAC008, and most other 22 mm and 35 mm anti-static hoses
Other Vacuum Hoses
VH1022, VH1035 and VH1635 (by means of VX120 adapter included with those hoses), VAC005 and VAC006 hoses, and most other 22 mm and 35 mm hoses
Adapters for 1-1/4 in and 1-1/2 in. Vacuum Hoses
VAC024 (VAC002 is not compatible with the GCM18V-12GDC miter saw.)
|
Includes
|
(1) GCM18V-12GDC PROFACTOR 18V Surgeon 12 In. Dual-Bevel Glide Miter Saw, (1) GBA18V80 18V CORE18V Lithium-Ion 8.0 Ah PROFACTOR Performance Battery, (1) 18V Charger, (1) 12 In. Blade, (1) Material Clamp, (1) Wrench, (1) Dust Bag
PROFACTOR 18V Surgeon 12 In. Dual-Bevel Glide Miter Saw Kit with (1) CORE18V 8.0 Ah PROFACTOR Performance Battery
This Bosch Surgeon 12 In. miter saw features the Axial-Glide™ System and BITURBO Brushless Technology to deliver a professional cordless solution to the jobsite. The GCM18V-12GDC features the Bosch-exclusive Axial-Glide™ for wider cross-cuts, enhanced alignment and smooth glide for the life of the tool. This system features and articulating arm with no slide arms behind the saw, so it takes less space than a sliding-rail miter saw. It delivers a large cutting capacity, with a 3.5 In. depth and a 13.5 In. width/crosscut. The bevel controls are upfront for easy access. This compact saw is portable while being compatible with a variety of 12 In. blades. This miter saw is part of the PROFACTOR System, which pairs BITURBO Brushless Technology with a CORE18V PROFACTOR battery. BITURBO Brushless Technology is a high-performance motor and drive-train system designed to deliver power comparable to high-demand corded tools. It has ECO mode, which extends the battery runtime by up to 20%. The saw features connectivity (module sold separately), providing a link to a connected device via Bosch Toolbox App to customize speed selection and individual mode setting.The saw provides integrated base extensions that extend material support up to 43 In. The 4-3/4 In. tall fence design supports taller material for accurate cuts.
|
|
|
